Workflow Overview

Page standards status: Informative

Workflow Overview

A business-friendly walkthrough of how APIX orchestrates the regulatory lifecycle — from initial submission to final decision.

How APIX Works — The Big Picture

APIX uses a Task-based workflow model. Every regulatory interaction — submissions, questions, decisions, payments — is represented as a FHIR Task resource. The lifecycle of a regulatory procedure is a series of Tasks, each with a status that progresses from draft → requested → received → accepted → in-progress → completed. Both parties subscribe to real-time notifications so they instantly know when something changes.

⚠️ Key Principle: The Regulator does not directly "send" messages to the Company. Instead, the Regulator updates the Task on the server. The Company, having subscribed to that Task, receives an automatic notification whenever a change occurs.

The Four Phases

Phase 1
Submission & Validation
  1. Company registers and authenticates
  2. Company uploads documents (PDFs, FHIR Bundles)
  3. Company creates DocumentReferences (metadata)
  4. Company posts the Task (the "orchestrator")
  5. Regulator validates the package
Phase 2
Payment
  1. Regulator issues a Payment Request (Task)
  2. Company submits Proof of Payment
  3. Regulator verifies and completes Payment Task
Phase 3
Review & Questions
  1. Regulator conducts technical review
  2. Regulator issues Questions (as new Tasks)
  3. Company provides Responses (in Task.output)
  4. Iterative Q&A until all issues resolved
Phase 4
Decision
  1. Regulator completes the original Task
  2. Decision letter attached to Task.output
  3. Company receives instant notification
  4. Full audit trail preserved in Provenance

Workflow Diagram

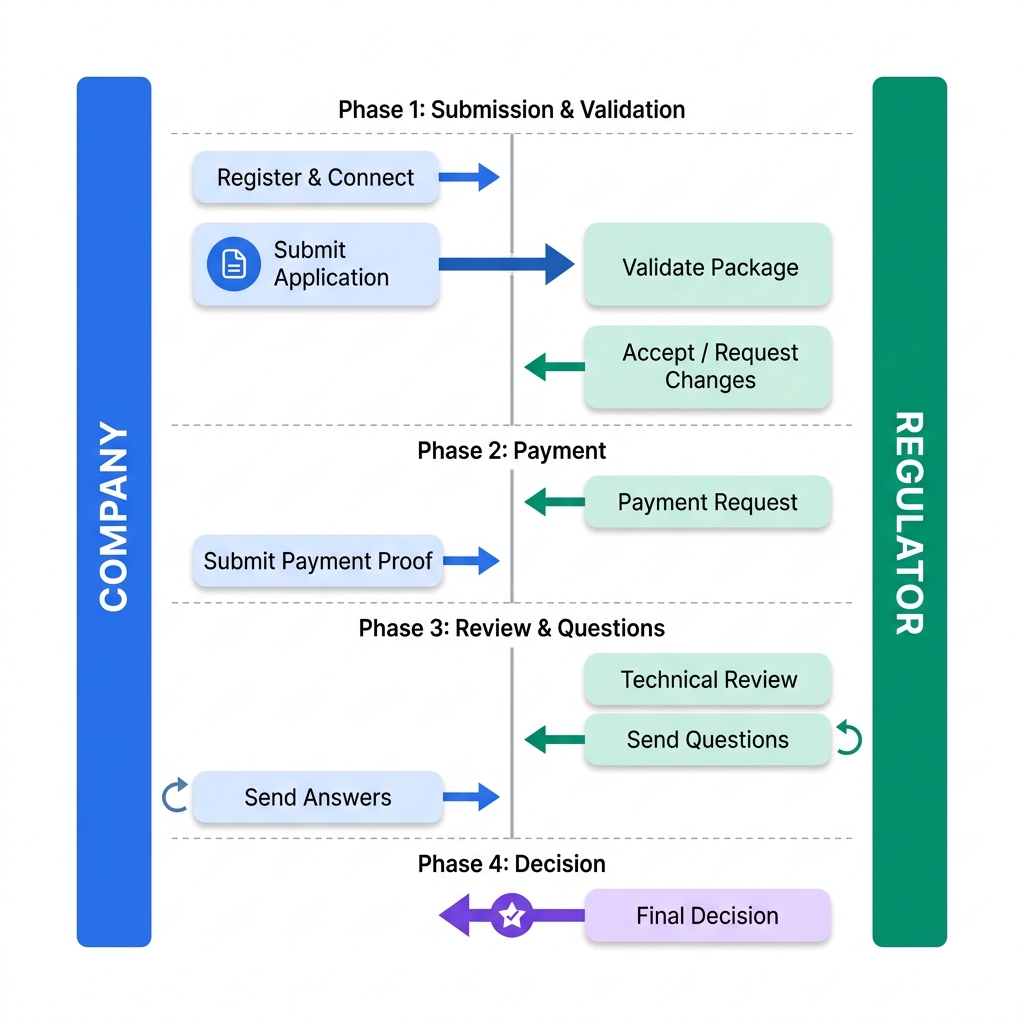

The following diagram shows the complete lifecycle of a regulatory procedure through APIX — illustrating the back-and-forth exchange between Company and Regulator across all four phases.

APIX Workflow Overview — Ping-Pong Diagram showing the four-phase exchange between Company and Regulator

Key Concepts

📋 Task = Regulatory Envelope

Every interaction (submission, question, decision) is a Task. Tasks carry metadata (who, what, when) and reference documents via Task.input and Task.output.

📄 DocumentReference = Library Card

Each uploaded file gets a metadata wrapper (title, type, CTD section). The regulator discovers files through the Task, downloading the payload only when needed.

🔔 Subscription = Real-Time Alert

Both parties subscribe to events (status changes, new Tasks). Notifications arrive instantly at configured endpoints — no polling required.

🔗 groupIdentifier = Procedure Thread

All Tasks within a single regulatory procedure share the same groupIdentifier, enabling portfolio-wide search and reporting.

Example: Shelf-Life Update

🔍 Technical Deep-Dive: For the full step-by-step technical detail of this workflow including FHIR resource examples, see the Workflow Deep-Dive.
