Authorization

Page standards status: Draft

Introduction

This FHIR Implementation Guide specifies the technical components of the Generic Function Authorization, a national initiative led by the Dutch Ministry of Health, Welfare and Sport (VWS). The GF Authorization aims to establish a standardized, interoperable system for authorizing access to data and services of healthcare organizations, enabling reliable and efficient exchange of health data across healthcare systems and organizations.

This guide outlines the data requirements and principles underlying the GF Authorization. Key design principles include:

  • International standards: The solution should be based on international standards, lowering the bar for international (European) data exchange and adoption by internationally operating software vendors.
  • Policy Based Access Control (PBAC) is used to control access to data. PBAC can be used for Role-Based, Attribute-Based and more complex business logic to determine access control. This enables patient-level, operation-level and/or resource-level permissions for various healthcare processes or secondary (e.g. research) use-cases.
  • Stakeholder Responsibility: Healthcare providers are accountable for implementing correct authorization

By adhering to these principles, this Implementation Guide supports consistent and secure authorization, fostering improved interoperability within the healthcare ecosystem.

Solution overview

On a high level, a data access/operation authorization starts with a request from the requesting party, for example: a practitioner requesting data. This request, along with information of the requesting party and e.g. patient consent records form the input data for the process. This input is evaluated by a policy by a responding party; this could be a data holder. The outcome is a decision (allow or deny). Basically: Input –> policy evaluation –> Output

Just below this top level abstraction, there's a lot more to discuss:

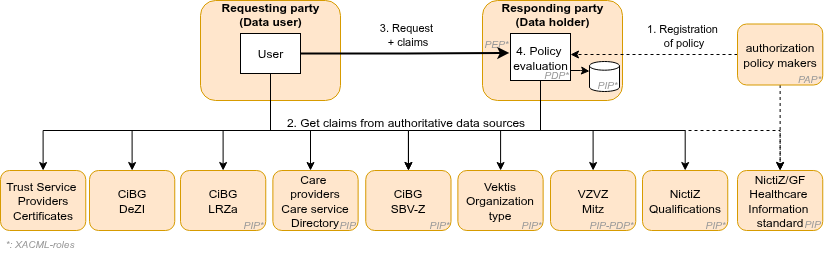

Overview of authorization process

  1. Authorization policy makers create authorization policies based on attributes specified in Healthcare Information models and standards. These attributes can be certain identifiers (BSN, URA, etc.), entity characteristics (organization type, practitioner role), permission records (qualifications, consent) and/or specified operations or capability statements for requesting and responding party
  2. Requesting and responding parties need to acquire attributes (data) from authoritative data sources. When to get this data is not specified here. A (PKIoverheid) certificate from a Trust Service Provider may be fetched one a year, a CiBG-DeZI-token may be fetched when a practitioner starts his/her shift and a VZVZ Mitz patient consent may be fetched, by the responding party, just after receiving a data request.
  3. The requesting party can now create a request and send it to the responding party along with 'claims'; statement on the e.g. identity or characteristics of the requesting party. The responding party may add additional claims or attributes, for example, a local patient consent and/or the VZVZ Mitz consent preference.
  4. The request and all claims/attributes are input for the authorization policy. The input is evaluated against the policy. The outcome is a decisions if the request is allowed or denied.

Scope

GF Authorization only specifies the input-variables, policy evaluation and output-variables of the authorization decision. How to obtain and verify the inputs, is out-of-scope; other pages in this IG specify the use of authoritative sources, certificates and/or verifiable credentials. Execution of the request and architectural design (e.g. Policy Enforcement Point or AAA-proxies) are also out of scope.

Components (actors)

This IG distinguishes 4 categories of actors:

  1. Authoritative data sources
  2. Autorization policy makers
  3. Requesting party (Data user)
  4. Responding party (Data holder)

The role of these actors can be explained in XACML terms. We'll not go into this here, but XACML-roles are added in the solution overview figure.

Authoritative data sources

Trust Service Provider Certificates: PKIoverheid certificates. Used to identify the organization operating the client or server of data user or data holder.

CiBG-DeZI:

  • Used to identify the practitioner and care provider
  • Role of the Practitioner. Uses (indirectly) the BIG-register as data source

CiBG-LRZa:

  • Registry of care providers and their care service directory endpoint-urls

Care service directories:

  • Can data holder handle my request?
  • Endpoint-url of data holder

SBV-Z:

  • Used to check the identity (BSN) of the patient

Vektis Organization type:

  • Vektis is the source of the care provider type. A care provider can be one or more types. For example: a pharmacy, hospital, general practitioner, care at home, etc.

VZVZ Mitz:

  • Patient Consent preference registry

NictiZ Qualifications:

  • Is data user (care provider and software) qualified for the request? This source claims the data user to be abled to use some CapabilityStatements from NictiZ Healthcare Information standards. The request should be in scope of the CapabilityStatements.

NictiZ Healthcare Information standards: Healthcare Information standards define which operations a data user or data holder should use/support. These standards also define HealthCare Information Models (HCIM's) and therefore which data labels, codes or categories can be used in policies.

Autorization policy makers

Authorization policies SHALL be expressed in the Rego policy language to avoid semantic ambiguity and support automated testing.

Requesting party (Data user)

Creates a request, adds necessary attributes/claims about itself and sends it to the responding party

Responding party (Data holder)

Acquires attributes/claims about requesting party and e.g. the patient consent. Evaluates the request. May have recorded resource-level access for data user while sending notification (TA Notified Pull mechanism) Implementers are not required to use the Rego-policy-language (nor the OpenID AuthZen API) in production systems, but the outcome of their authorization decisions SHALL match the outcome using the original, specified authorization policy.

Data models

GF Authorization uses the information model specification of OpenID AuthZen. The information model for requests and responses include the following entities: Subject, Action, Resource, Context, and Decision. The use of this information model is illustrated by an example of a data user searching for active MedicationRequests for a patient.

Subject

This is the principle requesting the data. Attributes may come from Identity Providers (CiBG DeZI) and or (client-)certificates. Attributes:

  • type: NOTE TO REVIEWER/EDITOR: to be specified (required by Authorization API spec). Currently not used by Knooppunt PDP.
  • id: NOTE TO REVIEWER/EDITOR: to be specified (required by Authorization API spec). Currently not used by Knooppunt PDP.
  • properties: this map contains at least the following attributes, but may be extended with other attributes required by the policy:
    • client_id: value identifying the application of the requester, e.g. client_id of the OAuth2-client.
    • client_qualifications: array of strings of data exchanges the client is qualified for.
    • subject_id: identifier of the practitioner (CiBG Dezi-nummer/UZI)
    • subject_organization_id: identifier of the organization of the practitioner (URA)
    • subject_organization: name of the organization of the practitioner
    • subject_role: array of strings indicating the roles of the practitioner (from CiBG Dezi / BIG-register)
    • subject_facility_type: type of the organization of the practitioner (Vektis)

Resource

This is the requested data. Attributes are typically from the request URL and request parameters (e.g. FHIR search parameters).

NOTE TO REVIEWER/EDITOR: action.fhir_rest communicates similar information, should these 2 converge? Knooppunt PDP currently only uses resource.type

  • type: the type of the resource, for example 'MedicationRequest'
  • id: the identifier of the resource, for example the FHIR Patient resource ID from the request URL.
  • properties: NOTE TO REVIEWER/EDITOR: to be specified

Action

The action performed by the request. For example 'GET' (read/search), 'POST' (create) , 'PUT' (update).

It contains information about the request, and a parsed representation of the request if supported by this IG. Policy writers are encouraged to use the connection type-specific properties, e.g. fhir_rest.search_params over request.query_params.

  • name: the name of the action, for example 'search'. NOTE TO REVIEWER/EDITOR: Currently not used by Knooppunt PDP.
  • connection_type_code (required): indicates the type of the connection. Policy writers are encouraged to use the HL7 EndpointConnectionType code system whenever applicable. The informs the policy engine on how to interpret the request.
  • request:
    • protocol (required): the protocol of the request, for HTTP/1.1.
    • method (required): the HTTP method of the request, for example 'GET', 'POST', 'PUT', etc.
    • path (required): the path of the request, for example /MedicationRequest.
    • query_params: a map of string arrays containing the query parameters of the request.
    • header: a map of string arrays containing the header parameters of the request.
    • body: base64 encoded body of the request, for example for a FHIR resource creation or update.
  • fhir_rest: if the request is a HL7 FHIR REST request, the following properties apply:
    • capability_checked: a boolean indicating whether the interaction is allowed by the associated FHIR CapabilityStatement. NOTE TO REVIEWER/EDITOR: Move CapabilityStatement to actual policy, instead of being policy input?
    • interaction_type: a string indicating the type of FHIR interaction, for example read, search-type, create, update, etc.
    • operation: a string indicating the FHIR operation, for example Patient-everything. Only applicable if interaction_type is operation.
    • search_params: a map of string arrays containing the FHIR search parameters of the request, for example {"status": ["active"], "patient": ["Patient/90546b0d-e323-47f3-909b-fb9504859f7b"]}.
    • include: an array of strings containing the FHIR _include parameters of the request, for example ["MedicationRequest:medication"].
    • revinclude: an array of strings containing the FHIR _revinclude parameters of the request, for example ["Provenance:target"].

For requests that are scoped to a patient, patient_bsn and/or patient_id MUST be provided. They are typically derived from the request (e.g. FHIR search parameter patient or identifier). They could also be sourced from the authentication token, or be looked up in the EHR if only patient_id was provided in the request, and the policy requires the patient_bsn for the Mitz consent check.

Context

Other input for the policy evaluation is added to the context.

  • context:
    • data_holder_facility_type: a string indicating the type of the organization of the data holder (Vektis), e.g. Z3.
    • data_holder_organization_id: a string indicating the identifier of the organization of the data holder (URA), e.g. 123.
    • patient_bsn: a string indicating the BSN (identifier) of the patient.
    • patient_id: a string uniquely identifying the patient in the system of the data holder, for example the FHIR Patient resource ID.
    • mitz_consent a boolean indicating whether the Mitz consent check allows sharing the data.
    • purpose_of_use: a string indicating the purpose of use of the request. NOTE TO REVIEWER/EDITOR: Currently not used by Knooppunt PDP.

Example of a HL7 FHIR search request

{
  "subject": {
    "type": "organization",
    "id": "URA|123",
    "properties": {
      "client_id": "cee473c4-d9be-487b-b719-f552189d5891",
      "client_qualifications": ["http://nictiz.nl/fhir/CapabilityStatement/mp-MedicationData.RetrieveServe","http://nictiz.nl/fhir/CapabilityStatement/bgz2017-servercapabilities","Twiin-TA-notification"],
      "subject_id": "900000009",
      "subject_organization_id": "87654321",
      "subject_organization": "Harry Helpt",
      "subject_role": ["01.041", "30.000", "01.010", "01.011"],
      "subject_facility_type": "Z3"
    }
  },
  "resource": {
    "type": "MedicationRequest",
    "properties": {
      "status": "active",
    }
  },
  "action": {
    "name": "search",
    "connection_type_code": "hl7-fhir-rest",
    "request": {
      "protocol": "HTTP/1.1",
      "method": "GET",
      "path": "/MedicationRequest",
      "query_params": {
        "status": ["active"],
        "patient": ["Patient/90546b0d-e323-47f3-909b-fb9504859f7b"]
      },
      "header": {
        "Accept": ["application/fhir+json"]
      }
    },
    "fhir_rest": {
      "capability_checked": true,
      "interaction_type": "search-type",
      "search_params": {
        "status": ["active"],
        "patient": ["Patient/90546b0d-e323-47f3-909b-fb9504859f7b"]
      }
    },
    "properties": {
      "method": "GET"
    }
  },
  "context": {
    "data_holder_facility_type": "Z3",
    "data_holder_organization_id": "URA|123",
    "patient_bsn": "123456789",
    "patient_id": "90546b0d-e323-47f3-909b-fb9504859f7b",
    "mitz_consent": true,
    "purpose_of_use": "treatment"
  }
}

NOTE TO REVIEWER/EDITOR: Add more examples

Security and privacy considerations

–TODO

Example use cases

Advanced Care Planning (ACP) / Proactieve ZorgPlanning (PZP)

The following policy allows the following FHIR requests, if the patient gave consent in Mitz:

  • GET [base]/Patient?identifier=http://fhir.nl/fhir/NamingSystem/bsn|{context.patient_bsn}
  • GET [base]/Consent?patient=Patient/{context.patient_id}&scope=http://terminology.hl7.org/CodeSystem/consentscope|treatment&category=http://snomed.info/sct|129125009
package pzp_gf

import rego.v1

#
# This file implements the FHIR queries for PZP/ACP (Proactieve ZorgPlanning)
# as specified by https://wiki.nuts.nl/books/pzp/page/pzp-volume-3-content
#

default allow := false
allow if {
    patient_gave_mitz_consent
    is_allowed_query
}

default patient_gave_mitz_consent := false
patient_gave_mitz_consent if {
    input.context.mitz_consent == true
}

# GET [base]/Patient?identifier=http://fhir.nl/fhir/NamingSystem/bsn|{value}
default is_allowed_query := false
is_allowed_query if {
    input.resource.type == "Patient"
    input.action.fhir_rest.interaction_type == "search-type"
    # identifier: exactly 1 identifier of type BSN
    is_string(input.action.fhir_rest.search_params.identifier)
    startswith(input.action.fhir_rest.search_params.identifier, "http://fhir.nl/fhir/NamingSystem/bsn|")
}

# GET [base]/Consent?patient={reference}&scope=http://terminology.hl7.org/CodeSystem/consentscope|treatment&category=http://snomed.info/sct|129125009
is_allowed_query if {
    input.resource.type == "Consent"
    input.action.fhir_rest.interaction_type == "search-type"
    # patient: reference Patient resource
    startswith(input.action.fhir_rest.search_params.patient, "Patient/")
    input.action.fhir_rest.search_params.scope == "http://terminology.hl7.org/CodeSystem/consentscope|treatment"
    input.action.fhir_rest.search_params.category == "http://snomed.info/sct|129125009"
}

–TODO <!– #### Lokalization-service authorization

example inputs

include Rego-policy

show/explain output

EPS request authorization

example inputs

include Rego-policy

show/explain output –>
