3D printable parts

Below are the 3D parts used to build Spenser.

Description

Part	Image	Description	Downloads

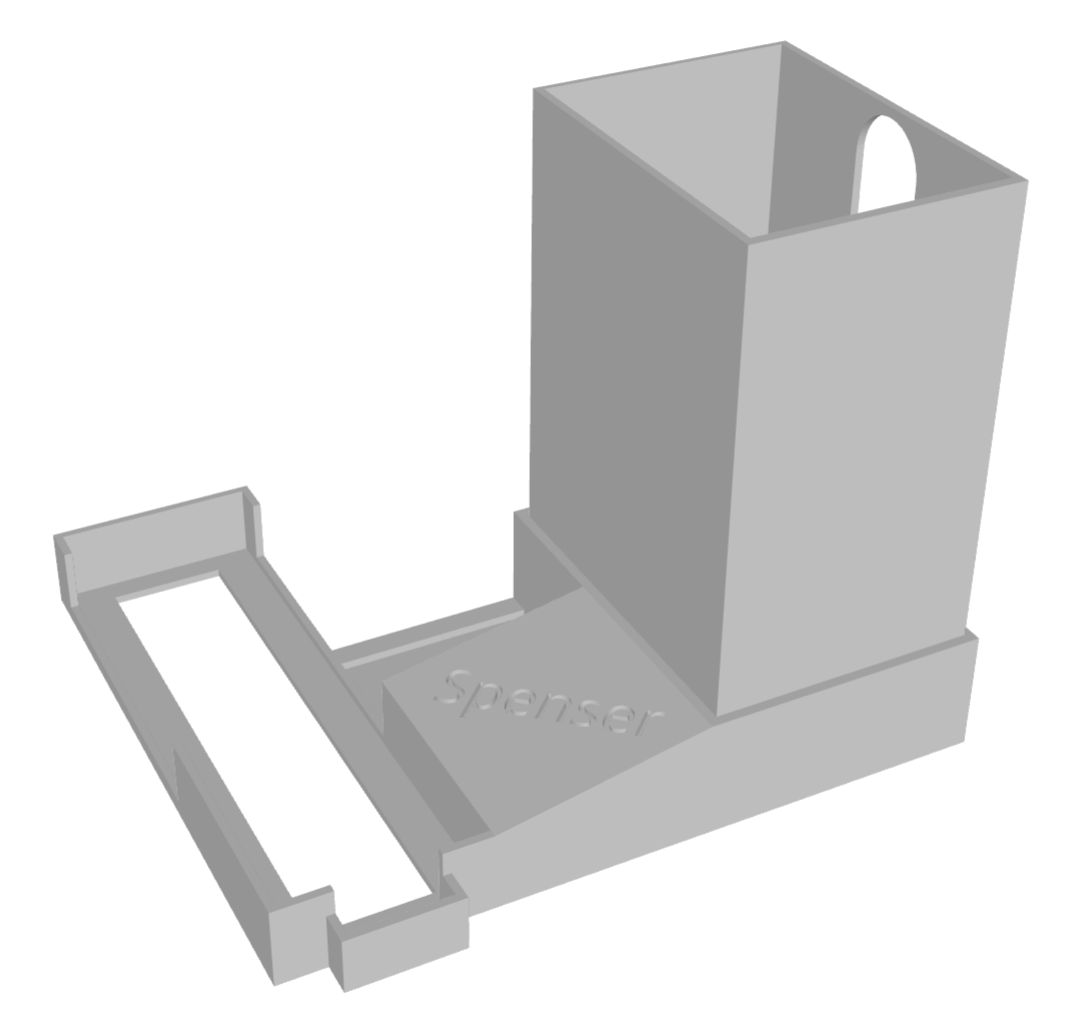

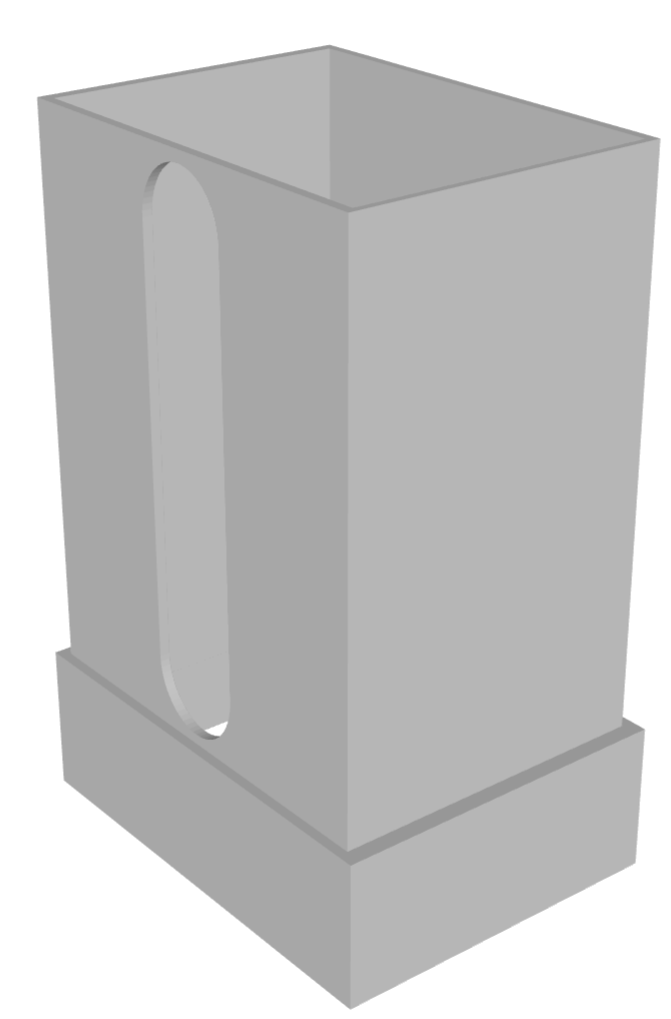

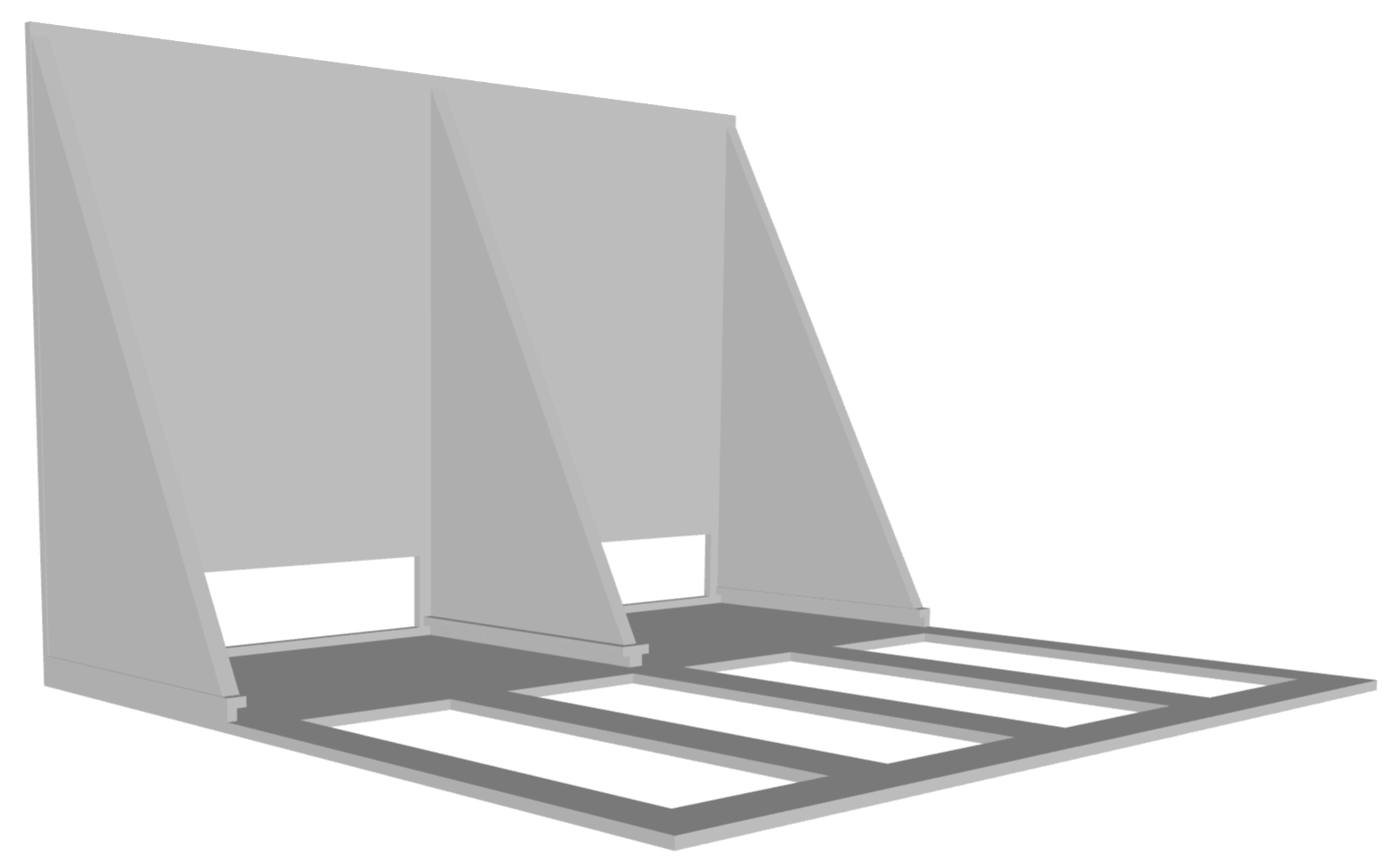

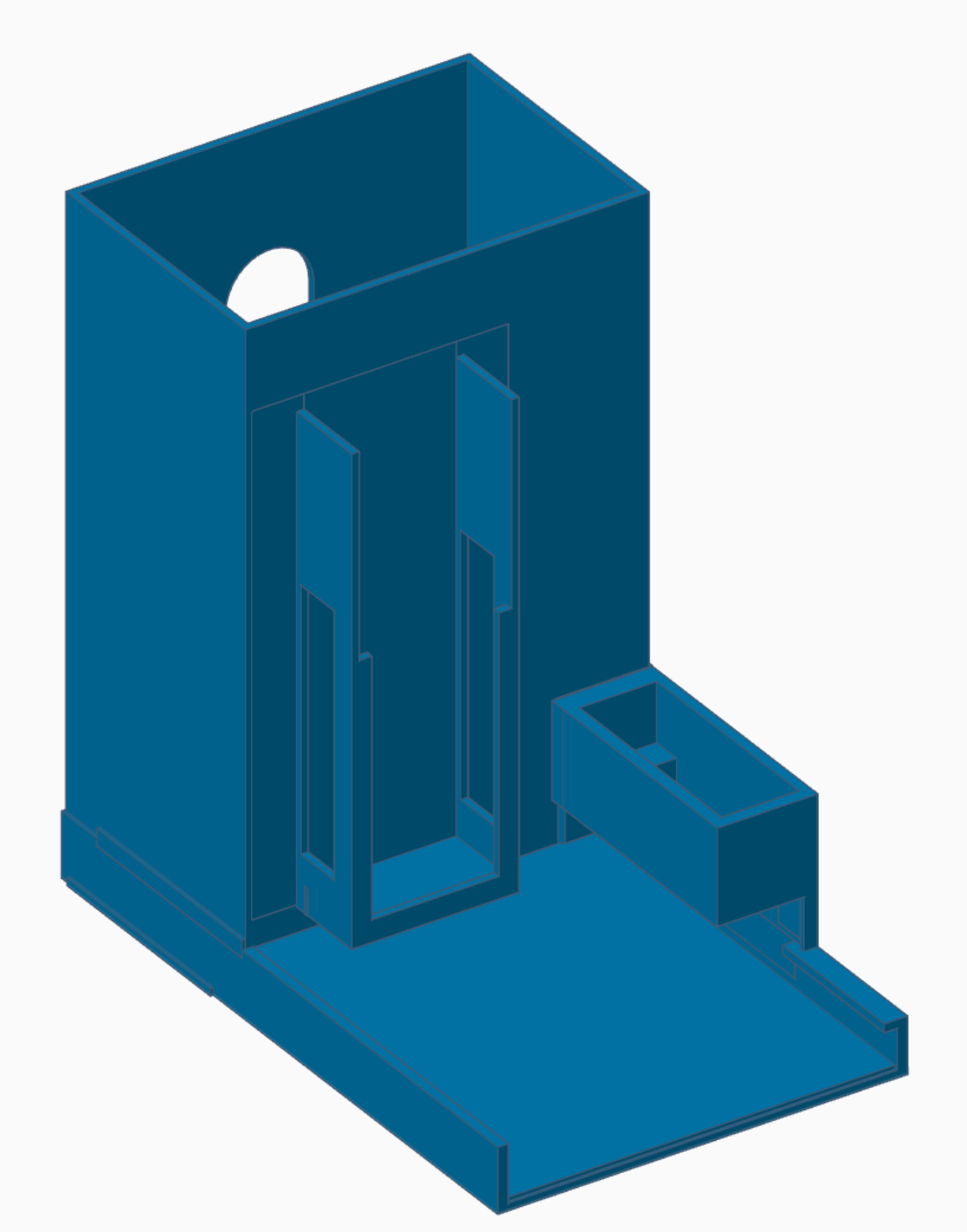

Body		Holds the chocolate stack, the servo motor and the slider rails, on its own base.	STL

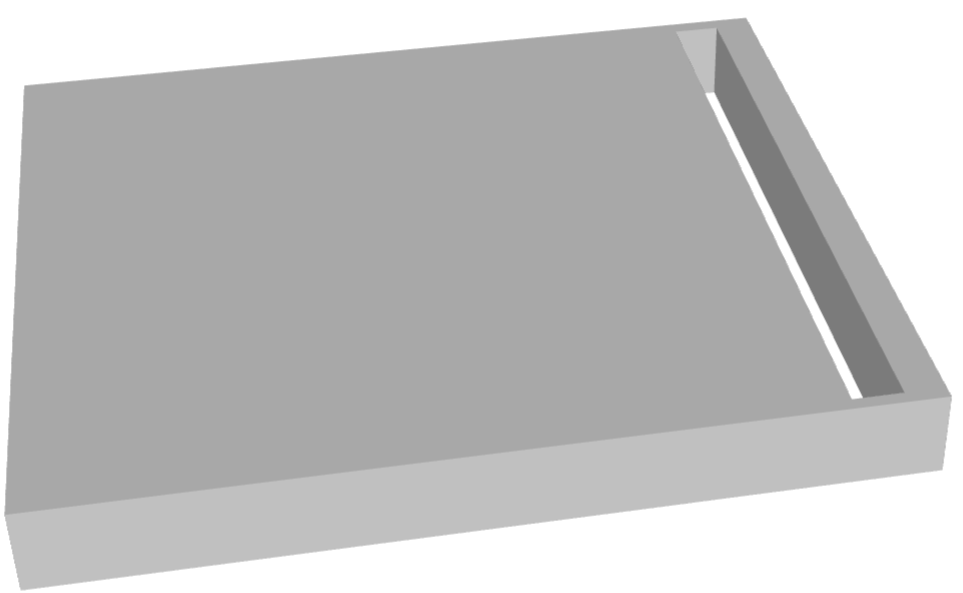

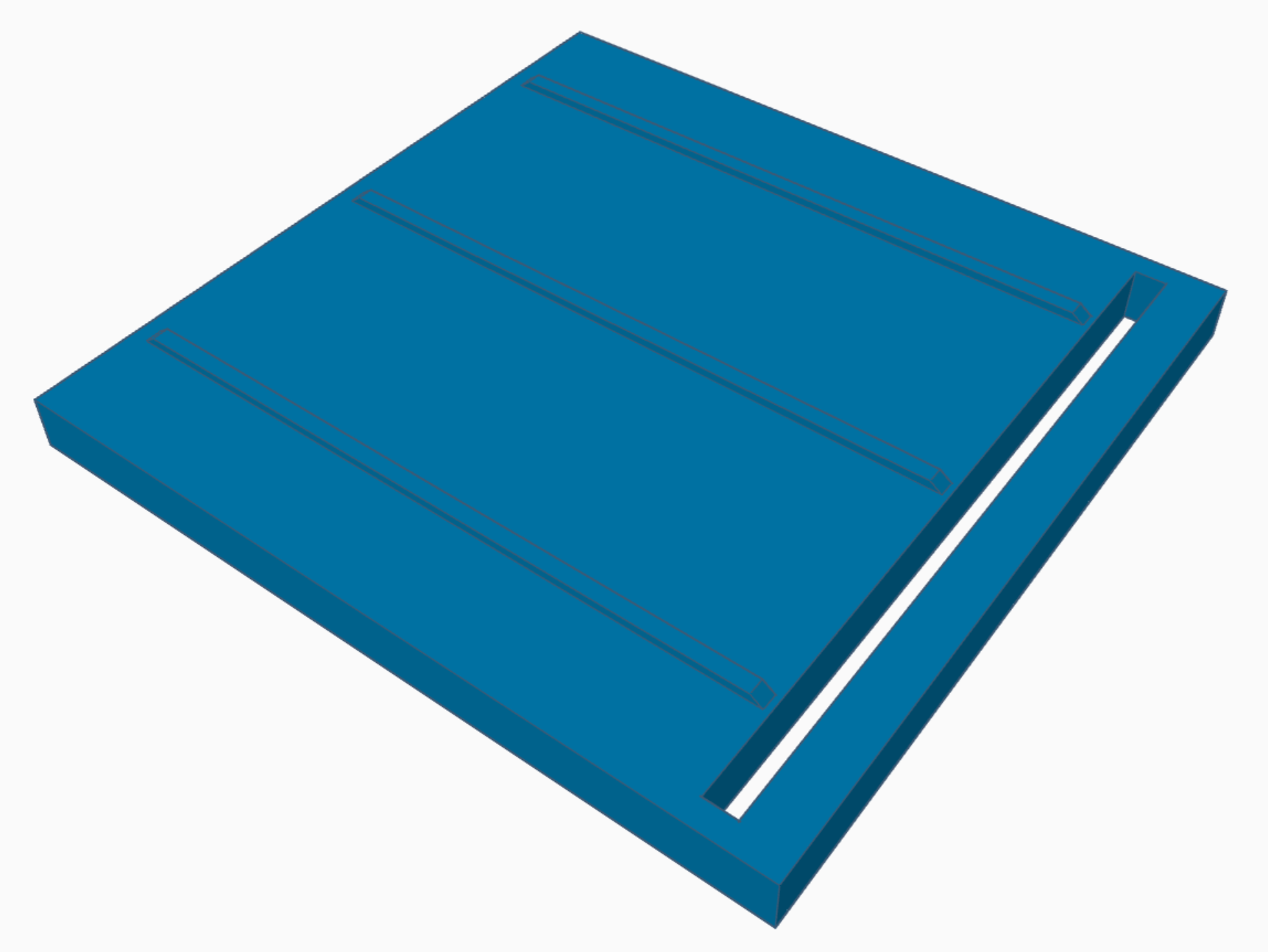

Pusher		Slides along the rails and pushes one chocolate out.	STL

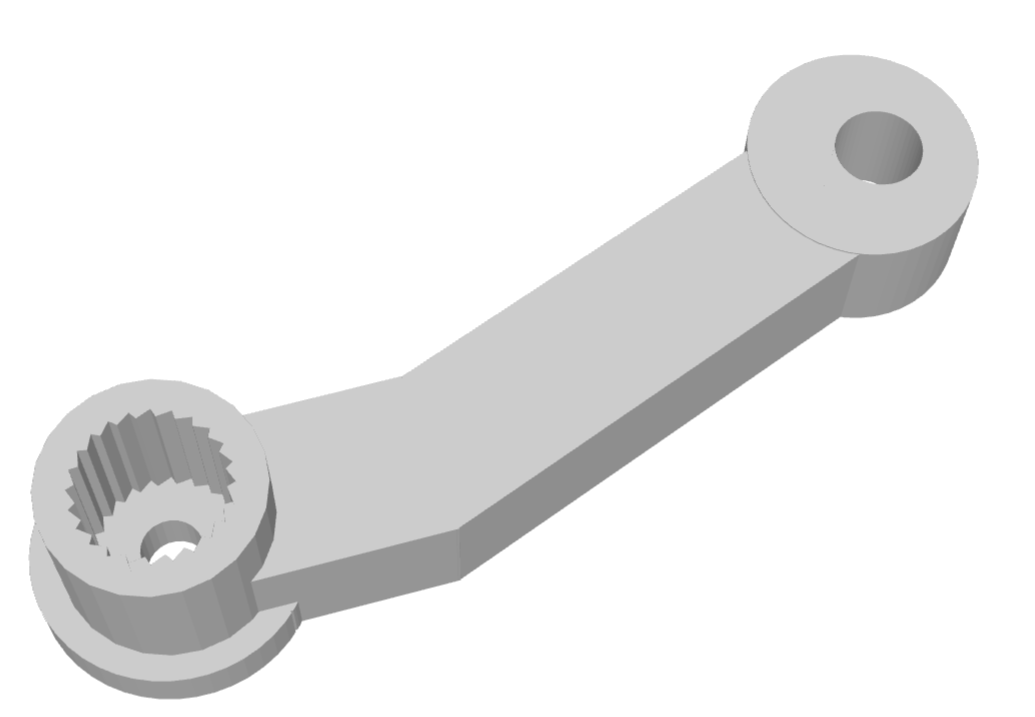

Arm		Attaches to the servo horn and drives the pusher.	STL

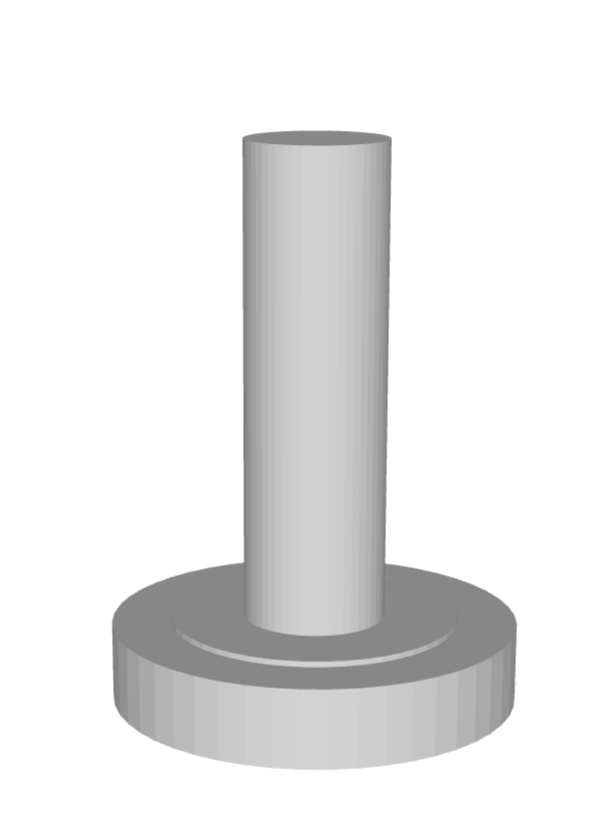

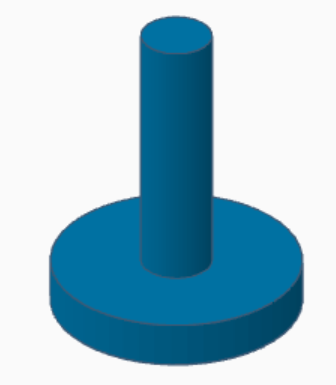

Pin		Axle connecting the arm to the pusher.	STL

Bill of Materials

The quantities indicated are for the 2-position dispenser.

Item	Description	Quantity
Body	Holds the chocolates, the motor and the slider rails	2
Arm	Rotating arm attached to the servo	2
Pin	Connects the arm to the pusher	2
Pusher	Pushes a chocolate out	2
