Interactive Clinical Decision Support

In many cases, the data required to assess applicability logic within clinical practice guidelines may be missing or incomplete. In Interactive Clinical Decision Support (CDS), the $questionnaire operation is used with PlanDefinition $apply and existing Structured Data Capture (SDC) operations to:

1. Prompt users for required data;
2. Pre-populate answers based on documented case features and/or inferencing rules;
3. Confirm pre-populated data; and
4. Extract new data to update the clinical recommendations

Familiarity with the $apply operation, CPG Case Feature Definition, and SDC form population and extraction are pre-requisites to understanding this process.

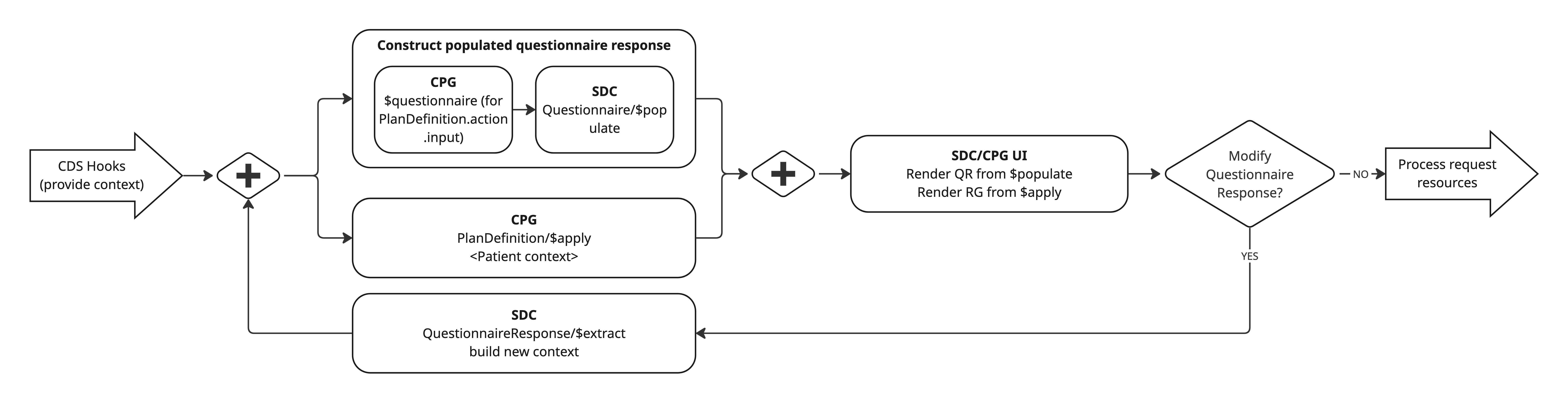

PlanDefinition $apply with questionnaire

Questionnaire generation, population, and extraction is enabled for CPG Apply based on the presence of case feature definition as action.input. The plan definition is processed as follows:

1. When calling planDefinition/$apply, if the plan includes action.input where the profile is a case feature definition (StructureDefinition), choose the questionnaire generation approach based on the desired behavior: use planDefinition/$questionnaire to generate a single non-adaptive Questionnaire (including case features across nested plan definitions), or call structureDefinition/$questionnaire for relevant case feature definitions to support an adaptive process.

2. Build a pre-populated QuestionnaireResponse containing the Questionnaire from Step 1 by calling questionnaire/$populate using SDC expression based population.

3. Render the QuestionnaireResponse to the user and pause for user input to either

   1. Change the QuestionnaireResponse and proceed to Steps 4 and 5; Or

   2. Select recommendations from the RequestGroup and end the apply cycle.

4. If the QuestionnaireResponse is updated, call QuestionnaireResponse/$extract using SDC definition based extraction to create new resources based on QuestionnaireResponse from Step 3.

5. If there are new resources from Step 4, pass to the context and call PlanDefinition/$apply. The cycle repeats.

Interactive CDS as an Adaptive Process

As outlined, the apply with questionnaire cycle is intended to repeat anytime new data is extracted from a QuestionnaireResponse. As new data is obtained, new questions may be displayed depending on applicable branches (as PlanDefinition.action) of the pathway.

Two questionnaire generation patterns are possible:

1. PlanDefinition/$questionnaire (non-adaptive): A full questionnaire can be generated from all referenced case feature definitions, including those in nested plan definitions. This is useful when collecting a comprehensive data set up front.

2. StructureDefinition/$questionnaire during apply (adaptive): As PlanDefinition/$apply evaluates logic and determines relevant branches, call StructureDefinition/$questionnaire for the currently relevant case feature definition(s). This returns only questions relevant to the current state and supports a truly adaptive process. \n\nConceptually this is similar to the SDC Adaptive Forms $next-question operation, where questions are dynamic based on prior user input. In Interactive CDS, PlanDefinition/$apply drives that adaptivity by determining which structure definitions should be used to generate the next set of questions.

Extracted Resource Conformance

When using extracted resources, it is important to consider conformance to case feature profiles defined on the plan definition. It is possible for the resource to be invalid but generate a result if the minimum data required for evaluation is present. The CQF message extension may be used to surface conformance errors or errors related to questionnaire items. Warnings do not imply operation failure.

Warnings may indicate:

• Missing extract values
• Non-conformant extracted resources
• Data excluded from CQL evaluation
• Warnings do not imply operation failure
• Consumers are expected to inspect and handle these messages

Questionnaire Generation Processing Semantics

The $questionnaire operation is used to generate a questionnaire when running $apply. Questionnaire can be called on StructureDefinition or PlanDefinition.

StructureDefinition/$questionnaire

See CPG $questionnaire operation. The core operation is extended in CPG to support the parameter "minimalOnly". If true, elements from the structure definition should be processed if:

1. The element is a part of the differential; or
2. The element is a part of the snapshot and has a cardinality of at least 1..* (min > 0). Nested child elements with min > 0 should also be included if parent is min > 0; and
3. The element is not constrained by fixed[x] or pattern[x]

In this way, minimal only mode restricts questionnaire item generation to only those relevant to form data extraction.

Process elements from the structure definition resource. For each element to process:

• If the element includes the SDC definition extract value extension, it is not necessary to create a questionnaire item. Instead, carry the extension over to the root item with type 'group'. See details on populate and extract conformance below.

• Otherwise, process a new child item as follows

  • Questionnaire.extension[sdc-questionnaire-initialExpression] → StructureDefinition.extension[featureExpression]. See details on populate and extract conformance below.

  • Questionnaire.initial[x] → ElementDefinition.defaultValue[x]

  • QuestionnaireItem.linkId → generate some unique id

  • QuestionnaireItem.definition → {StructureDefinition.url}#{full element path}, where:

    • "full element path" is path unless the path is a choice type
    • "full element path" is path with [x] replaced with type.code for choice types (e.g. 'Observation.effectiveDateTime')
    • If applicable, the sliceName is appended to the path with a colon (e.g Observation.value[x]:valueQuantity)

  • QuestionnaireItem.code → Not used

  • QuestionnaireItem.prefix → Not used

  • QuestionnaireItem.text in order of preference →

    • ElementDefinition short description;
    • ElementDefinition label; or
    • "Stringify" the ElementDefinition path

  • QuestionnaireItem.type (should always be a primitive type) →

    • If the element type is specified in the differential, map to Questionnaire.type
    • If the element type is not specified in the differential, use the snapshot type and map to Questionnaire.type
    • If the element type is code, treat as an item coding with type 'choice' (note: during $extract need to map this type back to code)
    • For a more detailed mapping of primitive and complex data types, see ElementDefinition Mappings

  • QuestionnaireItem.required → if element.min > 0

  • QuestionnaireItem.repeats → if element.max > 1

  • QuestionnaireItem.maxLength → element.maxLength (if type is a string)

  • QuestionnaireItem.answerOption → expanded value set binding

Conformance with expression based population and definition based extraction

See SDC expression based population and SDC definition based extraction

To support pre-population and data extraction:

• At the root of the questionnaire, include extension questionnaire-launchContext for the in context subject (most often Patient), encounter, etc.

• At the root item with type 'group'

  • Include the SDC definition extract extension. Set extension[definition].valueCanonical to the canonical of the SD.

  • Carry over any SDC definition extract value extensions from elements in the structure definition.

  • If CPG featureExpression is present on the SD

    • Add the SDC item population context extension set to the CPG featureExpression;

    • For each child item, include the SDC initialExpression extension and set the expression to the appropriate path from the population context.

Mapping ElementDefinition data types to Questionnaire Items

Allowed data types between element definition and questionnaire items differ where element definition allows for complex data types and questionnaire item is restricted to primitive types, Quantity, Reference, Attachment, and Coding. The data types can be mapped between StructureDefinition and Questionnaire as outlined in the table below.

For non-primitive, complex data types, $questionnaire should be applied to the SD of the data type and returned as a subgroup of questionnaire items. An example of the Range data type represented as a group of questionnaire items follows.

{
  "linkId": "Range",
  "definition": "http://example.org/StructureDefinition/ExampleObservation#Observation.value[x]:valueRange",
  "text": "Actual result",
  "type": "group",
  "item": [
    {
      "linkId": "Range.low",
      "definition": "http://example.org/StructureDefinition/ExampleObservation#Observation.value[x]:valueRange.low",
      "text": "Low limit",
      "type": "quantity"
    },
    {
      "linkId": "Range.high",
      "definition": "http://example.org/StructureDefinition/ExampleObservation#Observation.value[x]:valueRange.high",
      "text": "High limit",
      "type": "quantity"
    }
  ]
}

PlanDefinition/$questionnaire

See CPG plan definition $questionnaire operation.

PlanDefinition/$questionnaire uses the same principles and methodology as StructureDefinition/$questionnaire, but is generated from multiple StructureDefinitions. These are case feature definitions referenced from PlanDefinition action.input.

The PlanDefinition is processed as follows:

1. Find all planDefinition.action.input elements where a case feature is referenced. If the plan definition includes action.definitionCanonical with a reference to another plan definition, recurse over the nested planDefinition.action.input elements.

2. Using the processing semantics for structureDefinition/$questionnaire, for each case feature identified from the PlanDefinition:

   1. Generate a group of questionnaire items on the target questionnaire; or

   2. To leverage Questionnaire/$assemble, generate an individual questionnaire for each case feature. Then call $assemble to generate a single questionnaire. See SDC modular questionnaires for implementation details.

The questionnaire should conform to SDC Populatable Questionnaire - Expression and SDC Extractable Questionnaire - Definition and should align with the expected output of Questionnaire/$assemble, although the assembly process may differ.
